THE CASCADE

Location

St. John River, NB​

​

Course

1B Building Construction (Winter 2024)

​

Typology

Pedestrian Bridge

​

Software

Rhino, Enscape, V-ray, Adobe Ps, Adobe Ai

​

Collaborator

Rahmah Al-ttaee

Cascade is a pedestrian steel bridge located along the St. John River in New Brunswick, concealed among the forest’s flora and fauna. The form is influenced by the natural patterns of nearby waterfalls and lily pads, creating a playful path that connects a campsite to a network of trails.

​

As users move across the bridge, they experience a series of relaxing and atmospheric views, supported by its gracefully arched structure and stylish curved elements that reflect the form of lily pads. This design fosters a strong connection between the bridge and its context, emphasizing harmony with nature. Integrated lighting further enhances the experience, adding a soft glow to the canopy and creating a magical setting that invites exploration and a greater appreciation for the surrounding landscape.

St. John River

Site Plan


Site Axo

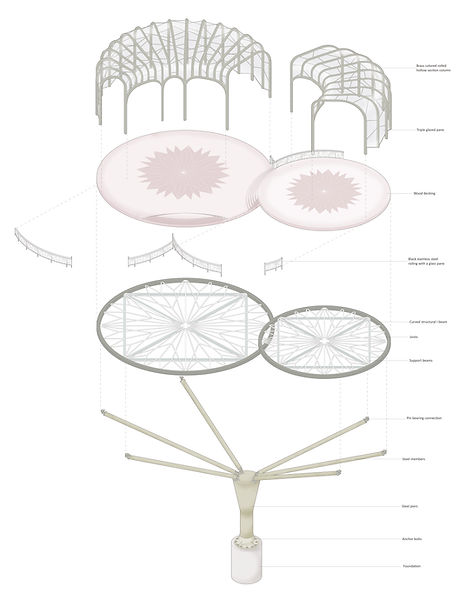

Exploded Axonometric

—Pngtree—black simple and proportional t
Exploded axo with no labels.jpg
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t
—Pngtree—black simple and proportional t

Brass colored rolled hollow section column

Triple glazed pane

Wood decking

Black stainless steel railing with a glass panel

Curved structural I beam

Joists

Support beams

Pin bearing connection

Steel members

Steel piers

Connection details with no label.jpg

Pot Bearing Connection

Connection details with no label.jpg

Pin-bearing Connection

Connection details with no label.jpg

Glass frame with rolled hollow steel columns

Connection details with no label.jpg

Steel-to-footing foundation connection:

Floor Plan without Canopy


Side Elevation

View at night
